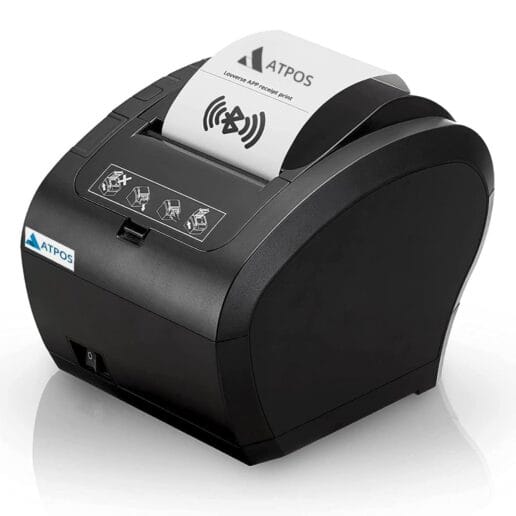

Atpos AT-406 80mm 3 Inch Bluetooth Thermal Receipt Printer (BT+USB+LAN+Serial) | Auto Cutter
₹7,290.00 – ₹7,390.00
- Bluetooth 4.0, Japanese TPH Head, Heavy Duty Platinum Plated Auto Cutter Blade
- 80mm thermal printer , Interface: Bluetooth+USB + LAN PORT+ Serial.
- High efficiency and clear printing, print speed can reach to 260mm/s.
- Up to 150 Km Head Life, Support Window software based on ESC/POS command.
| Model | AT-406 |
|---|---|
| Printing Method | Thermal Line Printing |
| Installation | Horizontally |
| Standard Accessories | Roll Paper x 1 (For checking the initial movement of the printer) CD-ROM (Drivers, Utility Software, Manuals) Paper Bering, USB Cable, Power Adapter Cable |
| Weight | Approx. 1.9kg |
Technical Specifications
| Brand | Atpos |
|---|---|
| Font | 9×17 / 12×24, Hanji Font: 24×24, Thai Font: 9×24 / 12×24 |
| Character Size (W x H) | 0.88×2.13mm / 1.25x3mm, Hanji Font: 3x3mm, Thai Font: 0.88x3mm / 1.25x3mm |
| Character Set | 95 Alphanumeric, 18 set International, 128×43 pages (including user-defined page) Hanzi: Simplified Chinese : GB18030-2000:28,553 Barcode: UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN), CODE39, ITF, CODEBAR (NW-7), CODE93, CODE128, GS1-128, Gs1 DataBar Two-dimensional code: PDF417, QRCode, MaxiCode, 2D Gs1 DataBar Composite Symbology |
| Characters Per Inch | 22.6cpi / 16.9cpi, Hanji Font: 7.8cpi, Thai Font : 22.6cpi / 16.9cpi |

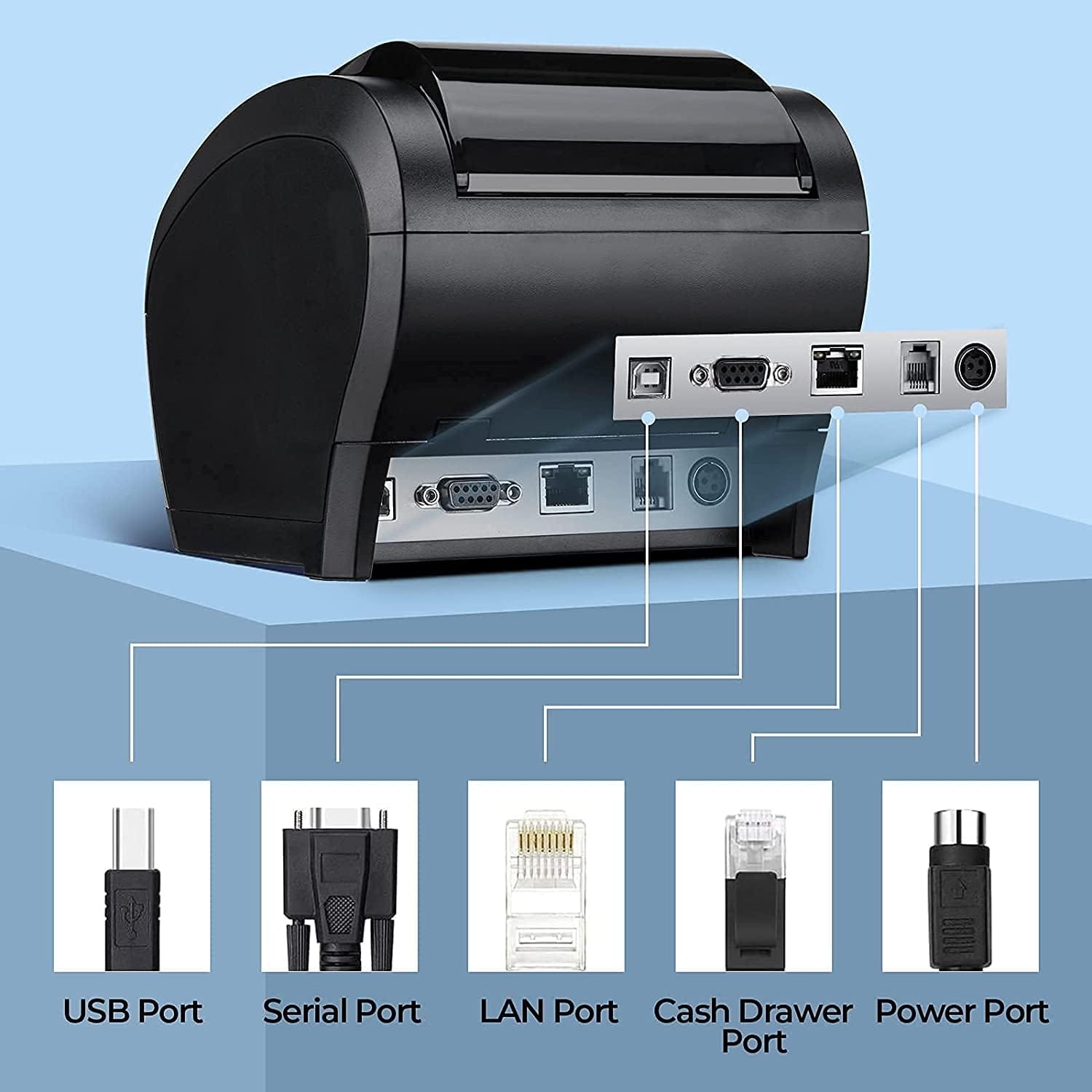

| Interface | USB+SERIAL+LAN+BLUETOOTH |
| Buffer | 2048K bytes, NV Flash : 256K bytes |
| Print Speed | Max 260mm/s |
| Dot Density | 208×208 dpi |
| Paper (Roll Paper (Width & Roll Diameter) | 79.5 ± 0.5 (W) × dia. 83.0 |
| Power | DC +24V ± 5% |
| Operating | Approx. 2.5A (Mean/Print ratio 18% with print pattern) |
| Standby | Approx. 0.1A (Mean) |
| Cash Drawer Power Supply | DC 12V 1A |
| Overall Dimensions (D x W x H) | 191x146x129 |
| Cash Drawer Integration | Yes Supported |
| Weight | 1.9 kg |
|---|---|
| Dimensions | 15 × 10 × 10 cm |
| Color | Black, White |
