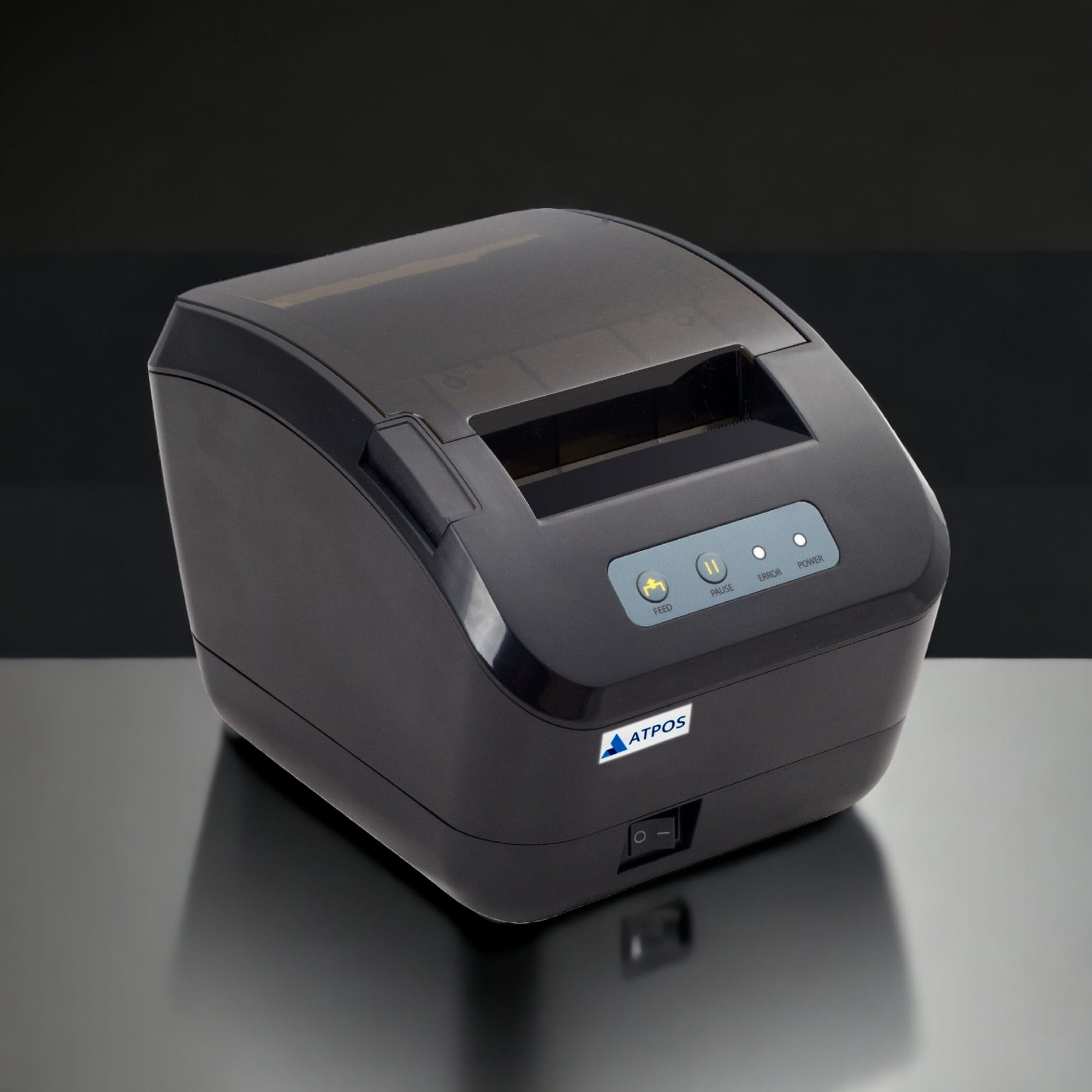

AtPOS AT-602 Printer is a Dual Mode Printer. The Printer can Print on Both Thermal Receipt Paper and Thermal Barcode Label Sticker Rolls.
Printing
- Printing Method: DirectThermal Line
- Printing width: 72mm
- Resolution: (8dots/mm,203dpi)
- Printing Speed: Min: 50.8mm/sec Max: 152mm/sec
- Interface: USB + Bluetooth
Memory
- Input Buffer: 2M
- NV Flast: 2M
Fonts
- FONT A: 12X24
- FONT B: 9×17
- User-Defined: Supports
Barcode
- 1D: CODE128 / 128M / EAN128 / CODE39 / 39C / 39S / CODE93 / EAN13 / EAN13+2 / EAN13+5 AN8 / EAN8+2 / EAN8+5
- 2D: PDF417/QR CODE/DATA MATRIX
Sensors
- Print Head Temperature Sensor: Thermal Sensitive resistance
- Paper Exit Detection: Photoelectric Sensor
Power
- Input: AC 110V/220V,50~60Hz
- Output: DC 24V/2.5A
- Cash Drawer output: DC 24V/1A
Physical characteristics
- Weight: 1.10KG
- Dimension: 195*148*148(MM)
Environment
- Working: Temp:5 ~ 45℃, Humidity:10 ~ 80%
- Storage: Temp:-10 ~ 50℃ ,Humidity:10 ~ 90%(No dew)
Reliability parameter
- Print Head Life:100 KM(print density≤12.5)
- Cutter Life: No Cutter
- Warranty: 1 Year
Software
- Driver: Linux,WinXP,Win7,Win8,Win8.1, Win 10
- Emulation: TSPL(Lable mode)/ ESC/POS(Receipt mode)
